BEGA

Product Specifications

1. Filling range: 0.1~10g
2. Filling accuracy: 1%~5% (depending on material characteristics)
3. Display: 7" TFT LCD
4. Power supply: AC220V (50/60 HZ)
5. Suitable for filling and measuring powders, such as medicinal powder, baby formula powder, food powder, etc.

Product Feature

1. The metering screw is made of stainless steel and formed as a single unit. The filling and metering system is driven by a Japanese-made servo motor.
2. The controller adopts a Japanese-made PLC system.
3. The operation system features a user-friendly human-machine interface with a touch screen for easy operation.
4. It has 60 sets of memory modules, allowing easy input and management of different product types and weights for convenient and efficient use.

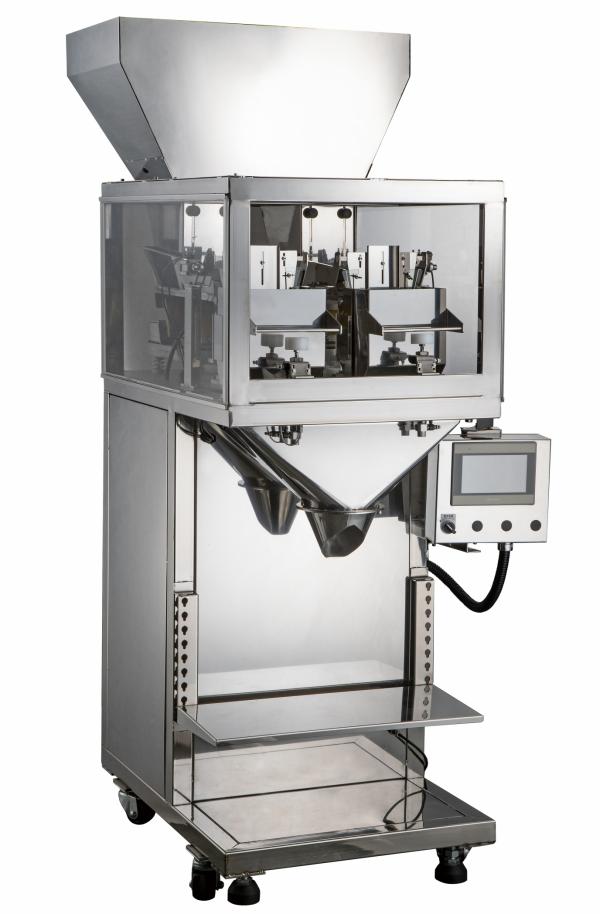

Product Specifications

1. Filling Range: 50~3000g (Load cell unit scale of 1g)
2. Display: 7" TFT LCD
3. Power supply: AC220V (50/60 HZ)
4. Suitable for filling granular materials such as green beans, rice, red dates, etc.

Product Feature

1. Filling weight accuracy within ±0.2~1%.
2. Built-in weighing function in the PLC, no need for additional weighing indicator installation.
3. Japanese-made PLC system adopted.
4. Equipped with fault detection device.
5. Can be used in conjunction with automatic feeding line
6. Excel report output function available

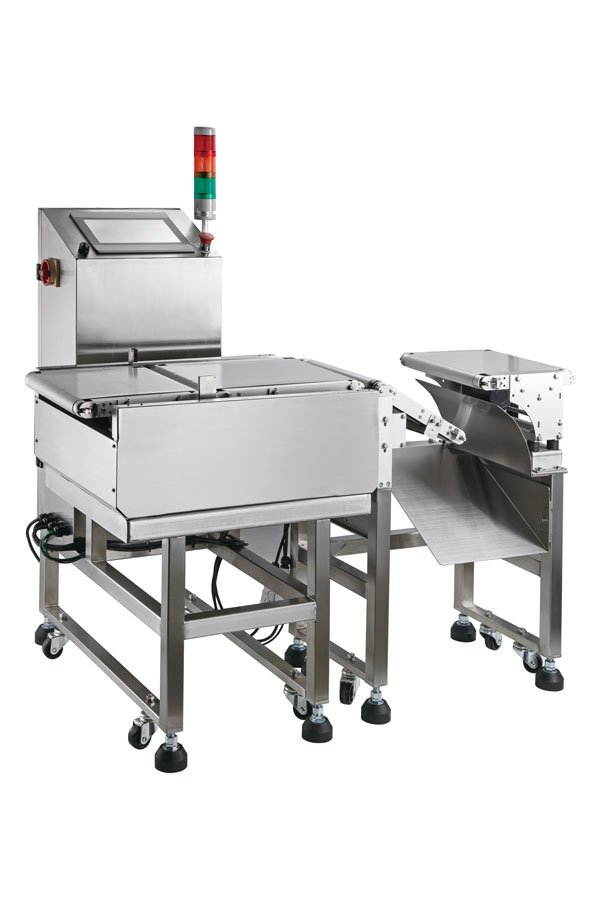

Product Specifications

1. Weighing Capacity: Above 3000g
2. Resolution: 1g/5g
3. Dynamic Accuracy: 1g/5g
4. Maximum Speed: 70 pieces/minute
5. Conveyor Belt Width: 120mm
6. Conveyor Belt Length: 300mm
7. Display: 10" TFT LCD
8. Operating Environment: Temperature: 0~40 degrees Celsius, Humidity: below 80%
9. Power Supply: AC220V Single/Three Phase (50/60 HZ)

Product Feature

1. Operation,Event,Weight Historical Records Function
2. Production History Network File Transmission Function
3. Automatically exports production history in EXCEL (CSV) format and transmits it to the designated path on the computer.
